#include <DetectorDataStructures.h>
Inheritance diagram for MDPPScintEvent:
Collaboration diagram for MDPPScintEvent:
Public Member Functions | |
| MDPPScintEvent () | |
| void | defineClass (MDPP16Event &a_ev, int a_detID, unsigned int a_ADC, unsigned int a_pkADC, unsigned int a_TDC) |
| void | defineClass (MDPP16Event &a_ev, int a_detID, unsigned int a_ADC, unsigned int a_pkADC, unsigned int a_TDC, std::vector< uint16_t > a_rfVector) |
| double | getTTPSD () const |
| getters More... | |
| void | setTTPSD (unsigned int a_ADC, unsigned int a_peakADC) |
| setters More... | |
 Public Member Functions inherited from MDPPDetBase | |
| MDPPDetBase () | |
| virtual void | defineClass (MDPP16Event &a_ev, int a_detID, unsigned int a_ADC, unsigned int a_TDC, int a_trigInd=0, int a_rfInd=1) |
| virtual void | defineClass (MDPP16Event &a_ev, int a_detID, unsigned int a_ADC, unsigned int a_TDC, vector< uint16_t > &a_trigArray, int a_trigInd=0) |
| uint16_t | getADC () const |
| uint16_t | getTDC () const |
| uint32_t | getendEventWord () const |
| uint16_t | getextTime () const |
| uint8_t | getdetNumber () const |
| uint8_t | getmodID () const |
| uint16_t | getRF () const |
| vector< uint16_t > | gettdcTriggers () const |
| void | setADC (uint16_t a_ADC) |
| void | setTDC (uint16_t a_TDC) |
| void | setendEventWord (uint32_t a_endEventWord) |
| void | setextTime (uint16_t a_extTime) |
| void | setdetNumber (uint8_t a_detNumber) |
| void | setmodID (uint8_t a_modID) |
| void | settdcTrigger (vector< uint16_t > a_tdcTrigger) |
| double | getGlobalTriggerTime () |
| double | getGlobalHitTime () |
| std::ostream & | print (std::ostream &a_stream) |
| prints info about the internal state of the class More... | |
Public Attributes | |
| float | m_TTPSD |
| Public Attributes inherited from MDPPDetBase | |
| uint16_t | m_ADC |
| uint16_t | m_TDC |
| uint32_t | m_endEventWord |
| uint16_t | m_extTime |
| uint16_t | m_detNumber |
| uint8_t | m_modID |
| uint16_t | m_nearestRF |
| vector< uint16_t > | m_tdcTrigger |
Detailed Description
class to hold "scintillator" events has charge (ADC value), TDC value the Tail-to-Total PSD value, the detector number
Constructor & Destructor Documentation
◆ MDPPScintEvent()
| MDPPScintEvent::MDPPScintEvent | ( | ) |
Member Function Documentation
◆ defineClass() [1/2]
| void MDPPScintEvent::defineClass | ( | MDPP16Event & | a_ev, |
| int | a_detID, | ||
| unsigned int | a_ADC, | ||
| unsigned int | a_pkADC, | ||
| unsigned int | a_TDC | ||
| ) |

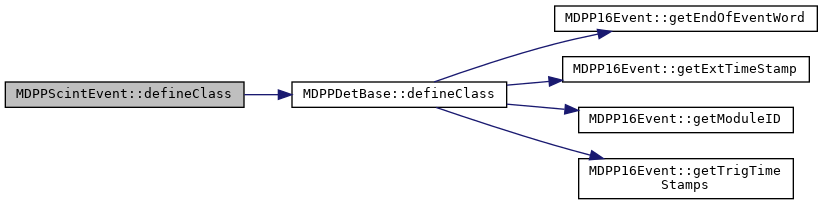

Here is the call graph for this function:
Here is the caller graph for this function:
◆ defineClass() [2/2]
| void MDPPScintEvent::defineClass | ( | MDPP16Event & | a_ev, |
| int | a_detID, | ||
| unsigned int | a_ADC, | ||
| unsigned int | a_pkADC, | ||
| unsigned int | a_TDC, | ||
| std::vector< uint16_t > | a_rfVector | ||
| ) |
Here is the call graph for this function:
◆ getTTPSD()
| double MDPPScintEvent::getTTPSD | ( | ) | const |
getters

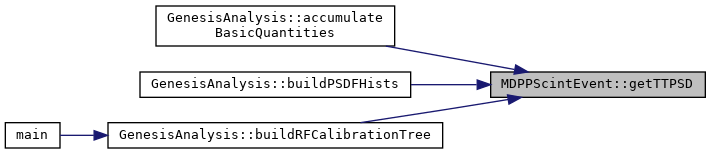

Here is the caller graph for this function:
◆ setTTPSD()
| void MDPPScintEvent::setTTPSD | ( | unsigned int | a_ADC, |
| unsigned int | a_peakADC | ||
| ) |
setters
Member Data Documentation
◆ m_TTPSD
| float MDPPScintEvent::m_TTPSD |
The documentation for this class was generated from the following files:
- DataProcessingAndAnalysis/MesytecDataProcessing/include/DetectorDataStructures.h
- DataProcessingAndAnalysis/MesytecDataProcessing/src/DetectorDataStructures.cpp
