MDPPDetBase Class Reference

#include <DetectorDataStructures.h>

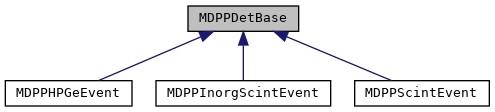

Inheritance diagram for MDPPDetBase:

Collaboration diagram for MDPPDetBase:

Public Member Functions
	MDPPDetBase ()
virtual void	defineClass (MDPP16Event &a_ev, int a_detID, unsigned int a_ADC, unsigned int a_TDC, int a_trigInd=0, int a_rfInd=1)
virtual void	defineClass (MDPP16Event &a_ev, int a_detID, unsigned int a_ADC, unsigned int a_TDC, vector< uint16_t > &a_trigArray, int a_trigInd=0)
uint16_t	getADC () const
uint16_t	getTDC () const
uint32_t	getendEventWord () const
uint16_t	getextTime () const
uint8_t	getdetNumber () const
uint8_t	getmodID () const
uint16_t	getRF () const
vector< uint16_t >	gettdcTriggers () const
void	setADC (uint16_t a_ADC)
void	setTDC (uint16_t a_TDC)
void	setendEventWord (uint32_t a_endEventWord)
void	setextTime (uint16_t a_extTime)
void	setdetNumber (uint8_t a_detNumber)
void	setmodID (uint8_t a_modID)
void	settdcTrigger (vector< uint16_t > a_tdcTrigger)
double	getGlobalTriggerTime ()
double	getGlobalHitTime ()
std::ostream &	print (std::ostream &a_stream)
	prints info about the internal state of the class More...

Public Attributes
uint16_t	m_ADC
uint16_t	m_TDC
uint32_t	m_endEventWord
uint16_t	m_extTime
uint16_t	m_detNumber
uint8_t	m_modID
uint16_t	m_nearestRF
vector< uint16_t >	m_tdcTrigger

Constructor & Destructor Documentation

MDPPDetBase()

MDPPDetBase::MDPPDetBase

(

)

Member Function Documentation

defineClass() [1/2]

void MDPPDetBase::defineClass ( MDPP16Event &  a_ev, int  a_detID, unsigned int  a_ADC, unsigned int  a_TDC, int  a_trigInd = 0, int  a_rfInd = 1  )

virtual

constructs the class using a MDPP16Event if multiple hits exist only the first is used

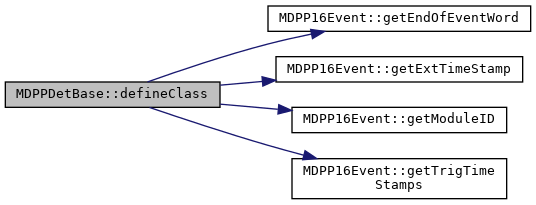

Here is the call graph for this function:

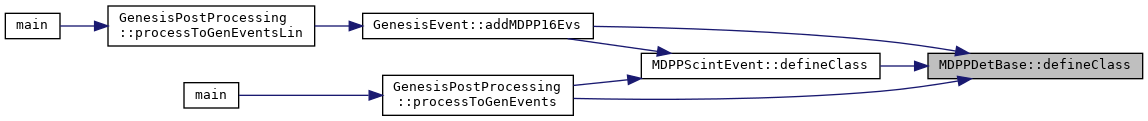

Here is the caller graph for this function:

defineClass() [2/2]

void MDPPDetBase::defineClass ( MDPP16Event &  a_ev, int  a_detID, unsigned int  a_ADC, unsigned int  a_TDC, vector< uint16_t > &  a_trigArray, int  a_trigInd = 0  )

virtual

constructs the class using a MDPP16Event if multiple hits exist only the first is used

Here is the call graph for this function:

getADC()

uint16_t MDPPDetBase::getADC

(

)

const

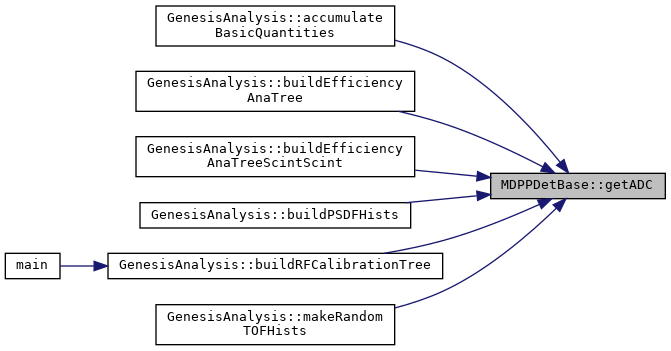

Here is the caller graph for this function:

getdetNumber()

uint8_t MDPPDetBase::getdetNumber

(

)

const

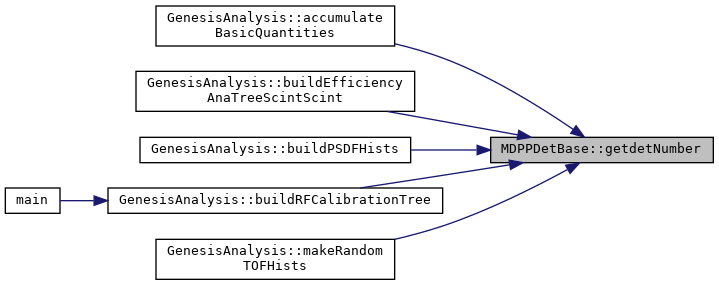

Here is the caller graph for this function:

getendEventWord()

uint32_t MDPPDetBase::getendEventWord

(

)

const

getextTime()

uint16_t MDPPDetBase::getextTime

(

)

const

getGlobalHitTime()

double MDPPDetBase::getGlobalHitTime

(

)

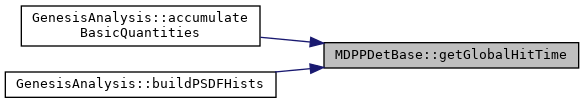

Here is the caller graph for this function:

getGlobalTriggerTime()

double MDPPDetBase::getGlobalTriggerTime

(

)

getmodID()

uint8_t MDPPDetBase::getmodID

(

)

const

getRF()

uint16_t MDPPDetBase::getRF

(

)

const

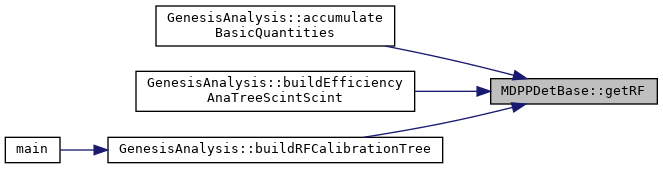

Here is the caller graph for this function:

getTDC()

uint16_t MDPPDetBase::getTDC

(

)

const

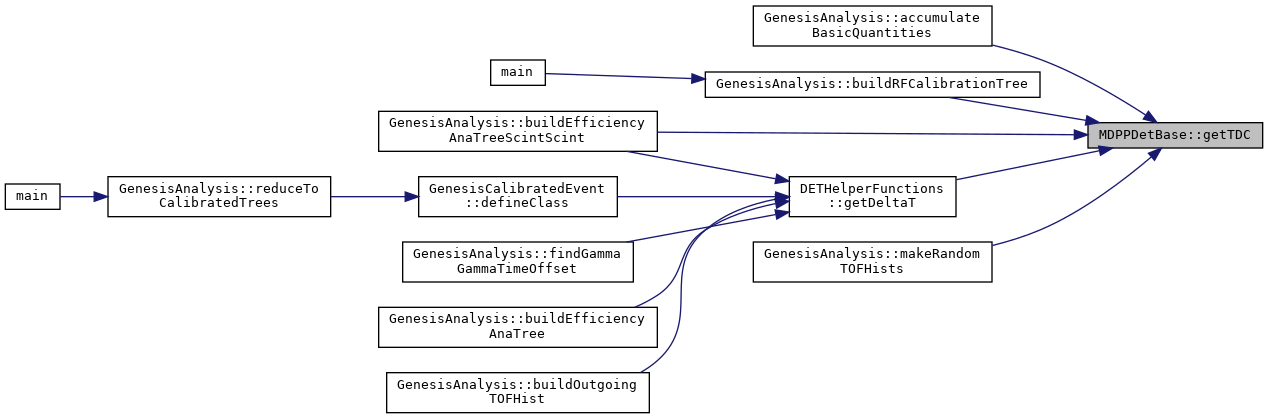

Here is the caller graph for this function:

gettdcTriggers()

vector< uint16_t > MDPPDetBase::gettdcTriggers

(

)

const

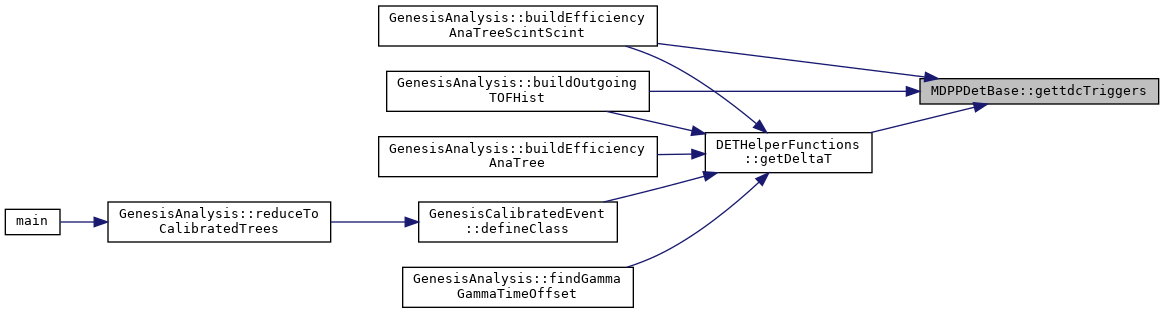

Here is the caller graph for this function:

print()

std::ostream & MDPPDetBase::print

(

std::ostream &

a_stream

)

prints info about the internal state of the class

setADC()

void MDPPDetBase::setADC

(

uint16_t

a_ADC

)

setdetNumber()

void MDPPDetBase::setdetNumber

(

uint8_t

a_detNumber

)

setendEventWord()

void MDPPDetBase::setendEventWord

(

uint32_t

a_endEventWord

)

setextTime()

void MDPPDetBase::setextTime

(

uint16_t

a_extTime

)

setmodID()

void MDPPDetBase::setmodID

(

uint8_t

a_modID

)

setTDC()

void MDPPDetBase::setTDC

(

uint16_t

a_TDC

)

settdcTrigger()

void MDPPDetBase::settdcTrigger

(

vector< uint16_t >

a_tdcTrigger

)

Member Data Documentation

m_ADC

uint16_t MDPPDetBase::m_ADC

m_detNumber

uint16_t MDPPDetBase::m_detNumber

m_endEventWord

uint32_t MDPPDetBase::m_endEventWord

m_extTime

uint16_t MDPPDetBase::m_extTime

m_modID

uint8_t MDPPDetBase::m_modID

m_nearestRF

uint16_t MDPPDetBase::m_nearestRF

m_TDC

uint16_t MDPPDetBase::m_TDC

m_tdcTrigger

vector<uint16_t> MDPPDetBase::m_tdcTrigger

---

The documentation for this class was generated from the following files:

• DataProcessingAndAnalysis/MesytecDataProcessing/include/DetectorDataStructures.h
• DataProcessingAndAnalysis/MesytecDataProcessing/src/DetectorDataStructures.cpp
