#include <STOFDetCons.h>
Inheritance diagram for STOFDetCons:

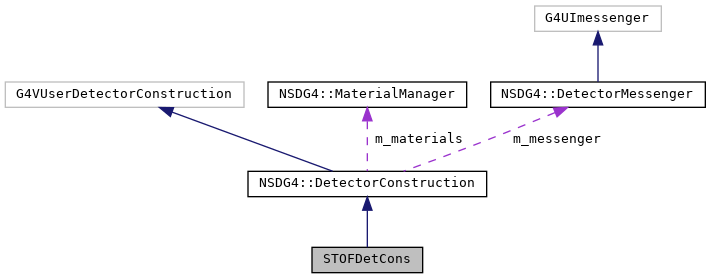

Collaboration diagram for STOFDetCons:
Public Member Functions | |
| STOFDetCons () | |
| virtual | ~STOFDetCons () |
| void | ConstructSDandField () |
| virtual G4VPhysicalVolume * | Construct () |
 Public Member Functions inherited from NSDG4::DetectorConstruction | |
| DetectorConstruction () | |
| virtual | ~DetectorConstruction () |
| virtual void | setTheCenter (std::string a_object, G4ThreeVector a_center) |
| virtual void | setTheMaterial (std::string a_object, std::string a_material) |
| virtual void | setTheWorldHalfSize (double a_x, double a_y, double a_z) |
| virtual void | updateGeometry () |
Additional Inherited Members | |
| Protected Attributes inherited from NSDG4::DetectorConstruction | |
| std::map< std::string, GeometryObject * > | m_geoObjects |
| std::map< std::string, G4LogicalVolume * > | m_lvMap |
| std::map< std::string, std::string > | m_lvSDMap |
| G4ThreeVector | m_worldHalfSize |
| MaterialManager * | m_materials |
| DetectorMessenger * | m_messenger |
| G4LogicalVolume * | m_worldLV |
| std::map< std::string, int > | m_copyDepth |
Detailed Description
this class is a detector construction which uses both the NSDG4 core components to build the STOF setup in geant using a config file that is also used for the data analysis
Constructor & Destructor Documentation
◆ STOFDetCons()
| STOFDetCons::STOFDetCons | ( | ) |
Default constructor use the 1" target cell. This needs to be changed in the constructor

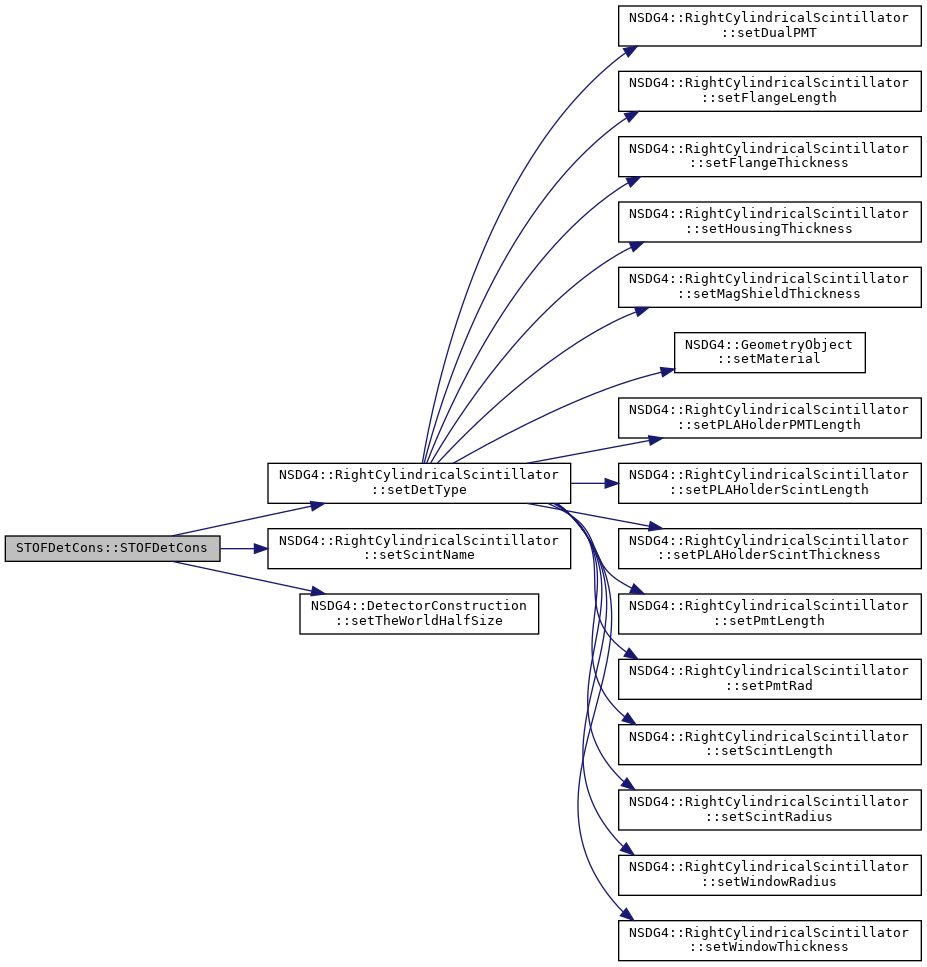

Here is the call graph for this function:
◆ ~STOFDetCons()
|
virtual |
Member Function Documentation

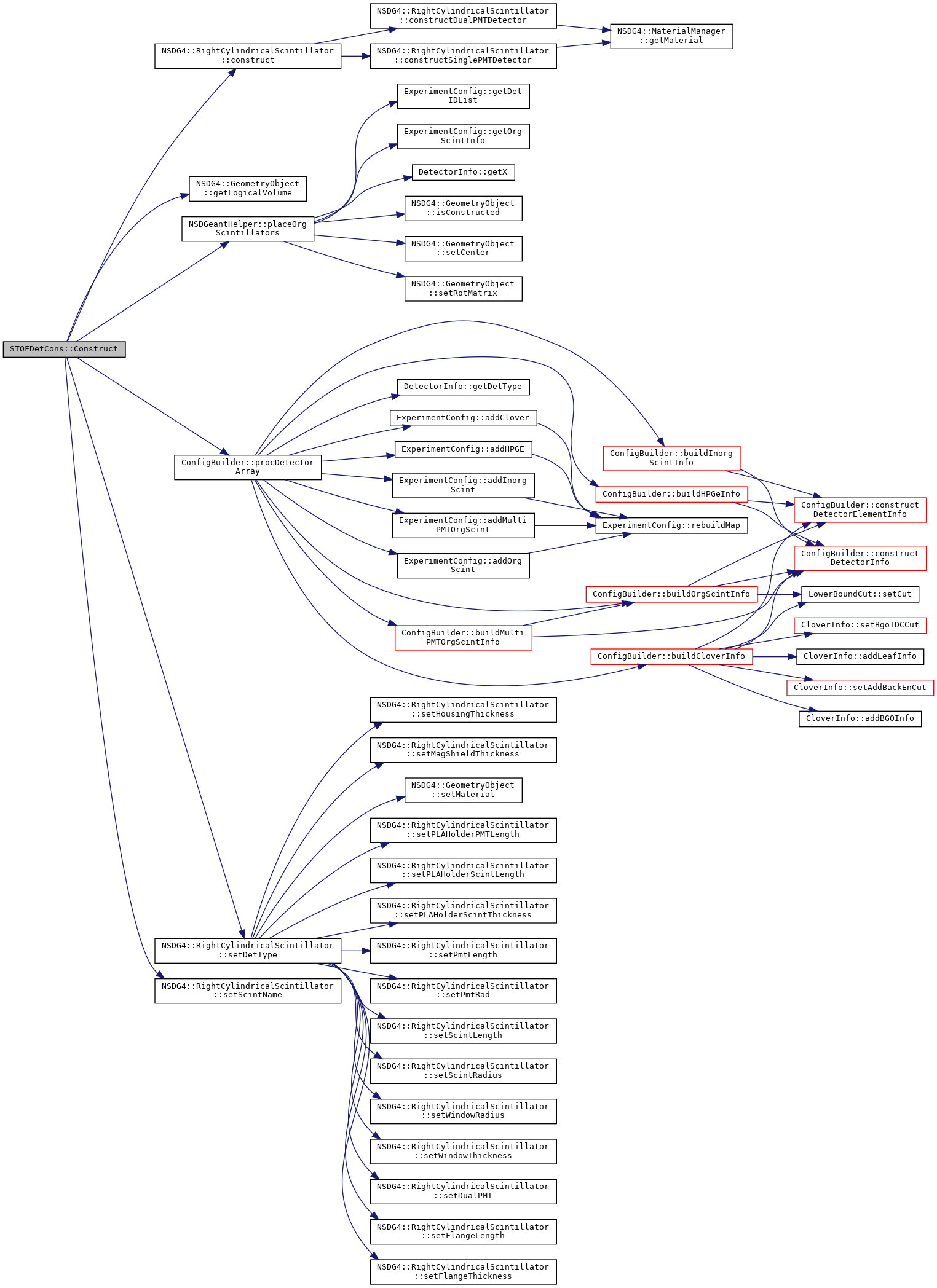

◆ Construct()
|
virtual |
◆ ConstructSDandField()
|
virtual |
The documentation for this class was generated from the following files:
- NSDG4Simulations/STOFSim/include/STOFDetCons.h
- NSDG4Simulations/STOFSim/src/STOFDetCons.cpp
