STOFPostProcessing Class Reference

#include <STOFPostProcessing.h>

Inheritance diagram for STOFPostProcessing:

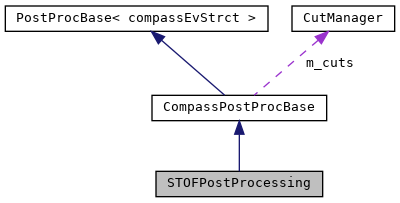

Collaboration diagram for STOFPostProcessing:

Public Member Functions
	STOFPostProcessing ()
	defualt constructor puts the class into an empty but working state More...
	STOFPostProcessing (std::string a_writeMode)
	allows setting the file type see base class constructor of same signature More...
void	loadConfig (std::string a_jsonConfigName)
void	genTimeDiffMultiPMTTarg (std::string a_outFile)
void	genAmpCalibHists (std::string a_outFile)
void	genPSDCalibHists (std::string a_outFile)
void	genCoinTimingCalibrationHists (std::string a_outFile, bool a_targDTCut=false)
void	genIncTimingCalibrationHists (std::string a_outFile)
void	reduceToSTOFEvents (std::string a_outfile="stofEvents.root")
int	buildCoincidences (double a_coinWindow, int a_minMult=2)
int	addCoinsFromFile (std::string a_fileName, double a_coinWindow, int a_minMult=2)
void	checkPSDCuts (int a_ch, string a_cutFile)
	check PSD cuts and compare number of events of each type More...
TGraph *	investigateCoincidenceWindow (int a_startWindow, int a_stopWindow, int a_step)
void	setRunStart (double a_runStart)
Public Member Functions inherited from CompassPostProcBase
	CompassPostProcBase ()
	default contstructor put the class into a commonly working state More...
	CompassPostProcBase (std::string a_writeMode)
virtual int	addFile (string a_filename)
	overloading defaul file loader to manage complex association of branches More...
virtual int	addCoinsFromFile (string a_fileName, double a_coinWindow)
void	setFileMode (bool a_hasWFs)
	used to set whether the file is list mode or mixed mode. More...
int	buildTimeSortedVector (int a_startEvent=0, int a_numToRead=-1)
	used to read tree contents into memory and ensure they are time sorted More...
virtual int	buildCoincidences (double a_coinWindow)
TH1 *	buildDtHist (int a_ch1, int a_ch2, double a_maxT, int a_maxMultiplicity=2, bool enforceOrder=true)
void	buildClycTree (int a_ch1, int a_ch2, double a_maxT, int a_maxMultiplicity=2, bool enforceOrder=true, int psdType=1, double a_slope=243, double a_offset=-2.3)
void	buildTrigDTTree (int a_trigChannel, std::string a_fileName)
TH1 *	buildDtVEHist (int a_ch1, int a_ch2, double a_maxT, int a_maxMultiplicity=2, bool enforceOrder=false, int a_EchOrder=0)
TH1 *	buildInterEventTime (int a_ch, double a_maxT)
TH1 *	buildCountRateHist (int a_ch, int a_maxCountRate)
TH1 *	buildDtTrigVEHist (int a_evCh, int a_trigCh, double a_maxT)
TH2 *	buildWallTimeVEnergy (int a_ch)
TH2 *	buildPSDPlot (int a_ch)
std::vector< compassCoin >	getCoins ()
void	writeCoinsToDisk (std::string a_outFileName="coinFile.root")
void	investigateCoins ()
std::ostream &	printEvent (int a_eventID, std::ostream &a_stream=std::cout)
std::ostream &	printTimeSort (std::ostream &a_stream=std::cout, int a_num=-1)
void	readCutFile (std::string a_fileName)
void	clearData ()
	clears sorted vector, coincidences and loaded file More...
Public Member Functions inherited from PostProcBase< compassEvStrct >
	PostProcBase ()
	defualt constructor puts class into a working state More...
virtual int	addFilesFromDirectory (string a_dir, string a_ext)
virtual int	loadEvent (int a_eventNumber)
	loads a specified event into memory More...
virtual int	fileNotLoaded ()
	tests if a file is loaded and prinst a message if not More...
virtual int	clearFileState ()
virtual std::ostream &	printState (std::ostream &a_stream=std::cout)
virtual	~PostProcBase ()
TChain *	getTrees ()
	danger danger, use this if you know what you are doing. More...

Additional Inherited Members
Protected Member Functions inherited from CompassPostProcBase
void	setTreeName ()
	sets the default tree name More...
void	setBranchName ()
	not used but implementation is required. More...
Protected Attributes inherited from CompassPostProcBase
TArrayS *	m_evArrayPtr
bool	m_hasWFs
	used to signal whether the file is list or has wf's More...
std::vector< compassEvStrct >	m_sortVector
	stores a time sorted vector More...
std::vector< compassCoin >	m_coins
	used to store compass coincidences More...
CutManager	m_cuts
	cut manager More...
bool	m_cutFileLoaded
	bool for cutmanager status More...
Protected Attributes inherited from PostProcBase< compassEvStrct >
TChain *	m_trees
	for associating the trees from files More...
string	m_treeName
	for storing the name of the tree More...
string	m_branchName
	for storing the name of the branch More...
compassEvStrct *	m_currentEvent
	for storing the current event More...
vector< string >	m_loadedFiles
	for storing a list of loaded files More...
bool	m_hasFile
	flag for wheter a file has been loaded More...

Detailed Description

this class is intended to store analysis routines used for turning experimental data from the Scattered Time Of Flight detector into neutron spectra the routines in this class assume that the data has been taken in pulse amplitude mode. all routines require that you load a config file so that the output of them can be

Constructor & Destructor Documentation

STOFPostProcessing() [1/2]

STOFPostProcessing::STOFPostProcessing

(

)

defualt constructor puts the class into an empty but working state

STOFPostProcessing() [2/2]

STOFPostProcessing::STOFPostProcessing

(

std::string

a_writeMode

)

allows setting the file type see base class constructor of same signature

Member Function Documentation

addCoinsFromFile()

int STOFPostProcessing::addCoinsFromFile	(	std::string	a_fileName,
		double	a_coinWindow,
		int	a_minMult = 2
	)

this function add the coincidences from a file or a globbed group of files and then clears everything except the coincidences from memory which should make working with multiple files a little less memory intensive coin window is in ns

this function add the coincidences from a file or a globbed group of files and then clears everything except the coincidences from memory which should make working with multiple files a little less memory intensive

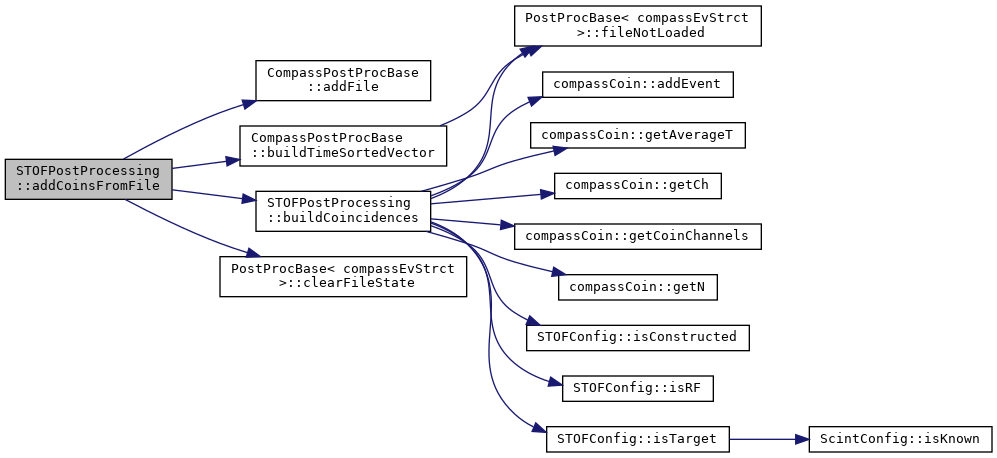

Here is the call graph for this function:

buildCoincidences()

int STOFPostProcessing::buildCoincidences	(	double	a_coinWindow,
		int	a_minMult = 2
	)

this function overloads the base class coincidence builder to independently manage the rf channel for when finishing the coincidence. It ignores the rf channel when building the coincidence, then finds the nearest rf event to associate with the coincidence. You can specify a minimum multiplicity to enable target singles counting as coincidences. specifying a min multiplicty of 3 will ensure both target channels and a scatter cell are in coincidenced within the specified window. this does not currently included an explicit test if the channels present actuall make a full set, just that there is three. the time scale of the coincidence has also been changed to ns.

loop over sorted events

associate the closest rf to event time from the array

Parameters

a_coinWindow

coincidence window in ns

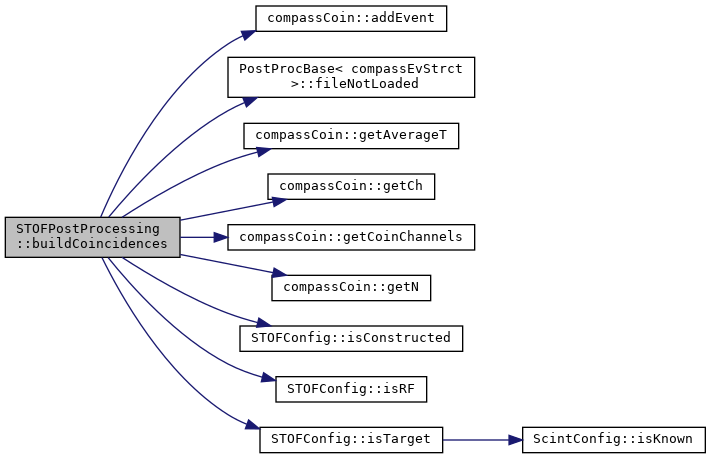

Here is the call graph for this function:

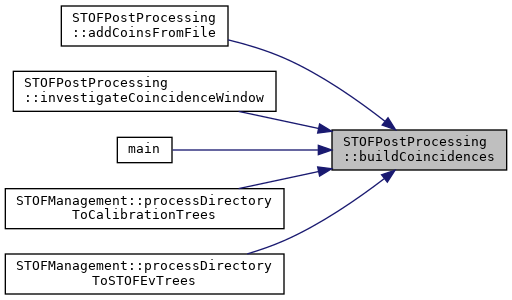

Here is the caller graph for this function:

checkPSDCuts()

void STOFPostProcessing::checkPSDCuts	(	int	a_ch,
		string	a_cutFile
	)

check PSD cuts and compare number of events of each type

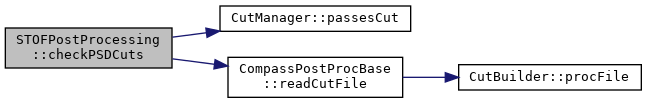

Here is the call graph for this function:

genAmpCalibHists()

void STOFPostProcessing::genAmpCalibHists

(

std::string

a_outFile

)

this function generates amplitude calibration spectra for all the detectors if Dual PMT's are used spectra will be produced for both of the independent readouts. This routine generically assumes you have loaded a file containing calibration data

build a hist

build a hist

build a hist

build a hist

Here is the call graph for this function:

genCoinTimingCalibrationHists()

void STOFPostProcessing::genCoinTimingCalibrationHists	(	std::string	a_outFile,
		bool	a_targDTCut = false
	)

this function generates timing calibration plots building coincidences between each scatter cell and all target cells

this function generates timing calibration Hists building coincidences between each scatter cell and all target cells

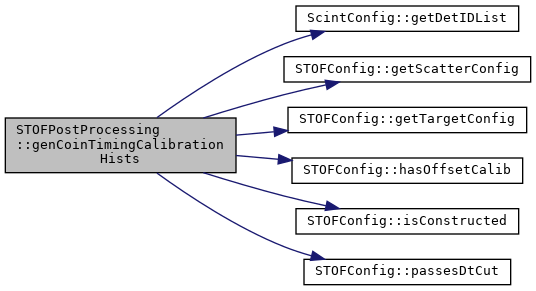

Here is the call graph for this function:

genIncTimingCalibrationHists()

void STOFPostProcessing::genIncTimingCalibrationHists

(

std::string

a_outFile

)

this function generates timing calibration plots building coincidences between each target cell and the cyclotron RF.

this function generates timing calibration Hists building coincidences between each target cell and the cyclotron RF.

get the target configuration for histogram building and event testing

need to ensure that all channels of the multipmt target are present

Here is the call graph for this function:

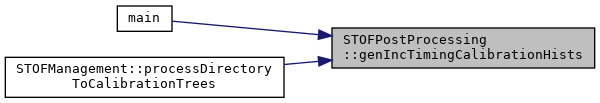

Here is the caller graph for this function:

genPSDCalibHists()

void STOFPostProcessing::genPSDCalibHists

(

std::string

a_outFile

)

this function is used to generate PSDHistograms and dump them to a file for developing PSD cuts for the data sets. This generically assumes that you have loaded a file with a mixed gamma and neutron field

build a hist

build a hist

build a hist

build a hist

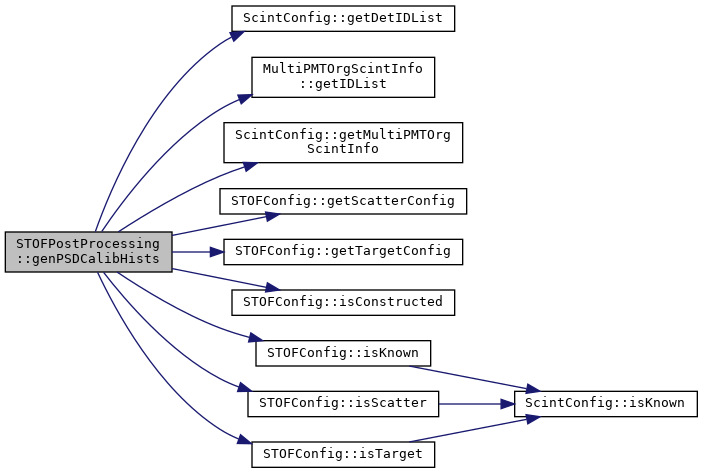

Here is the call graph for this function:

genTimeDiffMultiPMTTarg()

void STOFPostProcessing::genTimeDiffMultiPMTTarg

(

std::string

a_outFile

)

this function generates a time difference hist between PMT's coupled to a single cell to allow for the determination of the time offset and a width. It requires that the timeBaseID is set in the config file

build a hist for single time differences

1000.;

Here is the call graph for this function:

investigateCoincidenceWindow()

TGraph * STOFPostProcessing::investigateCoincidenceWindow	(	int	a_startWindow,
		int	a_stopWindow,
		int	a_step
	)

this function requires that your config file is complete with calibrations and cuts. It should realistically only be run with one or two files loaded it iteratively builds coincidences from the loaded files with different coincidence windows and test how many events pass the cut creating a resultant TGraph. All windows sizes are in ns !!!!!! match window test is currently hardcoded to test if the energy match is within 25% !!!!!!!

this function requires that your config file is complete with calibrations and cuts. It should realistically only be run with one or two files loaded it iteratively builds coincidences from the loaded files with different coincidence windows and test how many events pass the cut creating a resultant TGraph. All windows sizes are in ns

this tries to turn the coincidence information from coinEv into an STOFEvent, if it is succesful the then the cuts are tested

!!!!!!!!!!!!!!!!hard coded target ID !!!!!!!!!!!!!!!!!!!!!!!!!!

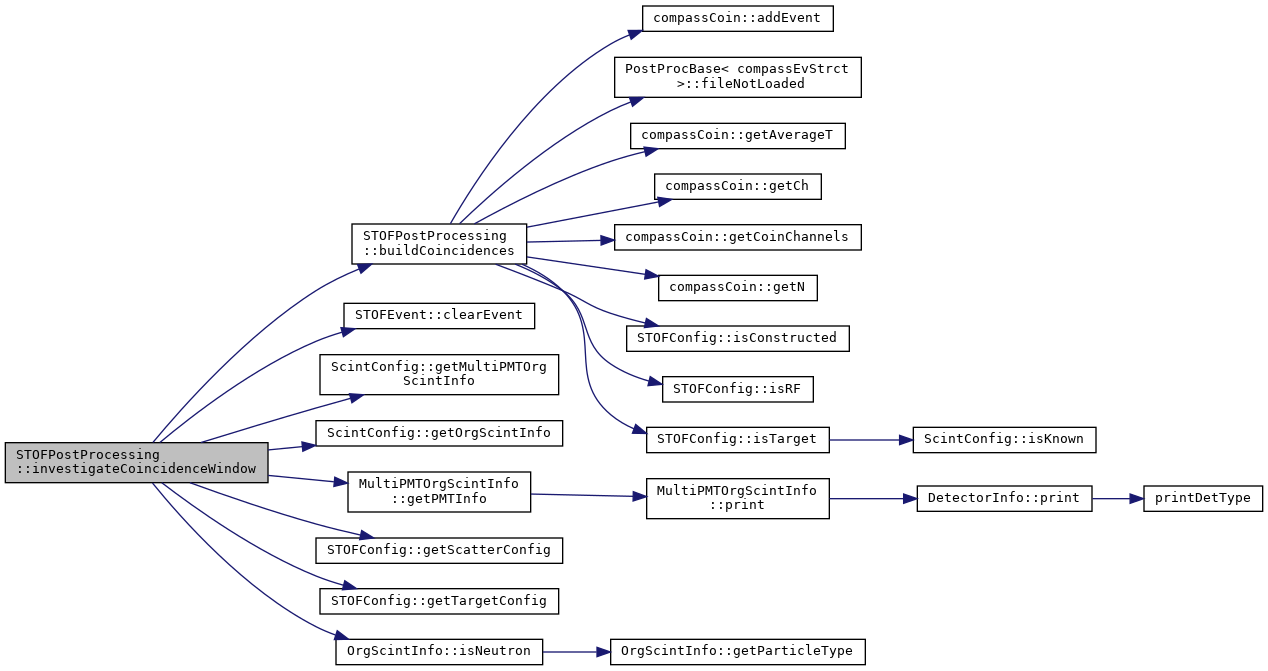

Here is the call graph for this function:

loadConfig()

void STOFPostProcessing::loadConfig

(

std::string

a_jsonConfigName

)

this function reads a specified configuration file for the experiment and stores it in the internal class member variable

Here is the call graph for this function:

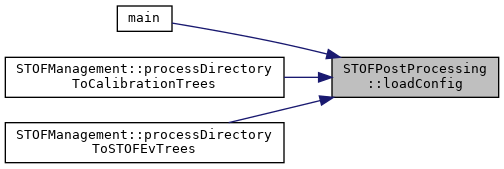

Here is the caller graph for this function:

reduceToSTOFEvents()

void STOFPostProcessing::reduceToSTOFEvents

(

std::string

a_outfile = "stofEvents.root"

)

this function requires that all calibrations are present in the config file. It loops over all events in the coincidence vector and calculates all possible quantities for an event in the system producing a tree with STOFEvent structs stored

loop over events and calculate quantities

this tries to turn the coincidence information from coinEv into an STOFEvent, if it is succesful the tree is filled, if not, the bad event counter is incremented.

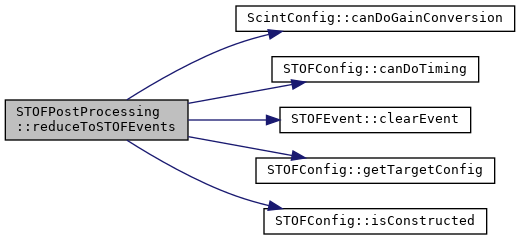

Here is the call graph for this function:

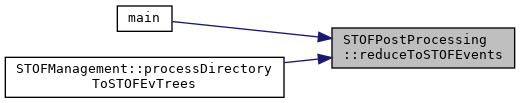

Here is the caller graph for this function:

setRunStart()

void STOFPostProcessing::setRunStart

(

double

a_runStart

)

this function is used when working with multiple runs to keep track of a wall clock time to allow for time dependent calibrations

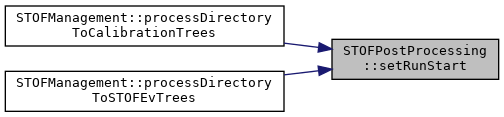

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• CAENDataProcAna/STOFAna/include/STOFPostProcessing.h
• CAENDataProcAna/STOFAna/src/STOFPostProcessing.cpp
